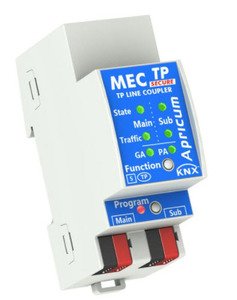

Apricum MECtp-Sec - KNX Secure LineArea Coupler, 2SU, REG

KNX Line/Area Coupler secure

Used as KNX Line/Area Coupler, MECtp connects a main line and a subline to enable KNX communication between both KNX TP lines. Used as KNX Repeater, MECtp can also be used to extend an existing KNX TP line by adding segments. Filtering of group communication and physically adressed telegrams is configurable. Transmission of configuration telegrams from subline to main line can totally be switched off. Special functions to ease troubleshooting, to accelerate commissioning and to avoid unneccessary telegram traffic are additionally available.

MECtp-Sec supports the "Secure Commissioning" option. When activated,
the configuration communication is encrypted by KNX Data Secure. Especially for system components, this kind of configuration protection is tremendously important.
Features / Benefits

various routing filter for group and individual telegrams
support of long telegrams
temporary disabling of routing filter via button
blocking of configuration on upper lines from sub line
multi colour LEDs show status information
various ACK and repetition settings
integrated ACK generator
Segment coupler functionality in preparation (available with ETS6)
