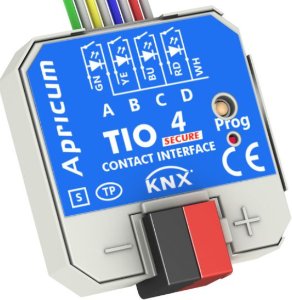

Apricum TIO4-Sec - KNX Secure Push Button Interface 4-fold with LED Outputs, for flush-mounting

KNX push button interface 4 fold secure with status outputs

The new 4-fold push-button interface TIO4-sec is the further development of the well-known TAI4. TIO4-Sec now also supports KNX Data Secure. The channels of TIO4-sec can be used as output to connect status LEDs.

Activation of -Secure commissioning- in ETS enables downloads to TIO4-Sec are encrypted and runtime communication can be protected. In this way, manipulation and unwanted access are made impossible.

To drive loads like status LEDs, channels can be operated also as outputs. LED´s brightness and night/day operation can be parametrized. Suitable for sensing potential-free contacts, TIO4-Sec provides the standard input functions for connecting push buttons, conventional switches and contact sensors to KNX.
Features / Benefits

Small dimensions
to connect classic push-buttons
Suitable for flush mounting
Detection of short and long switching
independent configuration of each channel
4 Channel Pushbutton Interface
1 or 2 Button Shutter / Dimming operation
various input functionality (switch, dimming, counter, -)
Inputs can be configured as dimmable outputs to drive status LEDs
