Multi I/O
INFORMACIÓN DEL FABRICANTE
| Brand | : Apricum |
| Reference | : MIO12 |
| Family | : actuator |
| Color | : |
| Warranty | : 2 years |
| Return allowed | : No |
MORE MANUFACTURER INFORMATION
| Price group | : A |
| EAN code | : 2000000047102 |
| NC/TARIC code | : 85364900 |
| Country of origin | : DE |
| Net weight | : 45 g |
| Gross weight | : 45 g |
| Length | : 11.4 cm |
| Width | : 11.4 cm |
| Height | : 11.4 cm |
SPECIFICATIONS
- INTERFACE
- KNX
- MOUNTING
- DIN rail
- ACTUATOR TYPE
- Binary, relay outputs
- BINARY OUTPUTS FUNCTIONALITY
- Binary, on/off
- NR. OF OUTPUTS
- 12 binary outputs / 6 channel shutter
- NR. INPUTS
- 12 inputs
DESCRIPCIÓN

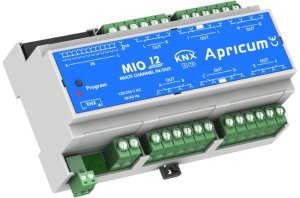

KNX switching actuator 12 fold with 12 binary inputs
The MIO-KNX 12 is a modular installation device for installing in a distribution board on 35mm mounting rails.
Connection to the KNX is implemented via a 2-screw terminal.
The actuators switch up to 12 independent electrical loads via potential free contacts (bi-stable relais).
The outputs are connected using screw terminals.
Each output is controlled separately via the KNX.
The actuators are particularly suitable for switching ohmic loads.
The 12-fold Binary Input part has 12 independent inputs for sensing potential free floating contacts such as conventional switches and push buttons.
Features / Benefits
Configurable binary outputs NC/NO, delay, staircase
Power on behavior according to parameter
Large number of logic functions for the input channels (sun protection, one-button shutter, dimming, -) and the output channels (switch, scene, staircase, delay, -)
Inputs for switching, toggle, blinds, scene, dimming
Detects short and long switching
