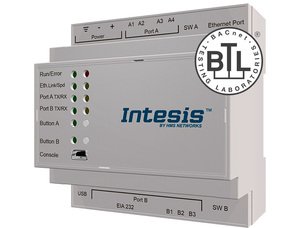

Modbus TCP & RTU Master to BACnet IP & MS/TP Server Gateway - 250 points

Modbus TCP & RTU Master to BACnet IP & MS/TP Server Gateway

Integrate any Modbus RTU or TCP server device, or both at the same time, with a BACnet BMS or any BACnet IP or BACnet MS/TP controller. The aim of this integration is to make accessible Modbus system signals and resources from a BACnet based control system or device, as if it was a part of the own BACnet system and vice-versa.

FEATURES

• UL Certified
• BTL Certified
• Support for BACnet IP Client and MSTP Master
• BACnet Advanced features available (Trend logs, Calendars, etc.)
• Support for 2 independent RTU ports for integration into BACnet IP < NEW!
• Up to 5 Modbus TCP nodes/devices
• Up to 32 Modbus devices per RTU node (without repeater) and up to 255 in total
• Possibility to generate/download templates of your Modbus products
• Easy integration & updates with Intesis MAPS

Description

This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features.

The BTL mark ensures 100% compatibility and, at the same time, guarantees a seamless integration with any BACnet device.

The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.

BACnet Protocol Translators

Our BACnet solutions have been specially designed to allow supervision and bidirectional control of systems and equipment talking BACnet, DALI, KNX, LonWorks, M-Bus and Modbus protocols.

On the BACnet server versions, the gateway provides server functionality to the BMS or BACnet controller over BACnet/IP through the Ethernet port and over BACnet MS/TP through the serial port.

On the BACnet client versions, the gateway provides client functionality to control BACnet IP server devices through Ethernet and BACnet MSTP devices through the serial port. In such cases, control and monitoring of BACnet devices from ASCII, KNX and Modbus BMS controllers is possible.

• Great integration flexibility thanks to KNX TP, LonWorks, RS485, Ethernet, DALI or M-Bus interfaces.
• Scaled licences per number of datapoints help finding the right gateway version for your project.
• Conforms to BACnet revision 14, B-AAC Profile.
• Supports BI, BO, AI, AO, Device, BV, AV, MI, MO, MV, NC, Schedule and Calendar BACnet objects.
• Supports subscription requests (COV).
• BTL certified.
