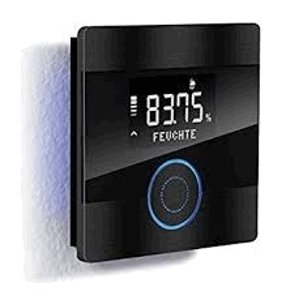

Enertex® Synohr MultiSense KNX room controller witht voice recognition - Starter Edition

Enertex® SynOhr® MultiSense KNX is the world`s first KNX touch room controller with built in self-sufficient voice recognition and with no need for an external power supply - it is fed directly from the KNX bus.

- High quality anodized aluminum housing
- Front Panel RGB ring illumination (Status)
- RGB Ambient lights
- Displaying KNX text messages and symbols
- Playing arbitrary audio files from SD card
- Fits in standard wallbox
- Contains bus coupling unit

The room controller measures the temperature, humidity and color intensity. A dot-matrix can show KNX-compliant 14-byte strings. An integrated speaker outputs audio signals stored on the included SD card (Standard Version).

The vocabulary speech recognition is approximately 250 words, need not to be taught separately and can be parameterized via the ETS, so that commands as "COMPUTER, LIGHT 30 PERCENT" are possible (Premium Version). The words can also be changed by the user via the free software SynOhrStudio.

The central button is colored illuminated and gives visual feedback to the recognized sequence. At the lateral edges, a colored "ambient" lighting is installed. The brightness of the lightning can be adjusted automatically via built-in brightness sensor or adjusted by KNX Groupadresses. The same applies for the display backlight. The color of the ring and ambient lighting can chosen arbitrary. Lighting effects are of these elements on and off (depending on the device variant).

SynOhr® MultiSense is fed directly from the KNX bus and requires no external power supply. Two touch buttons on the left or right corner of the display, and a built-in speaker button to KNX telegrams trigger (switching dimming etc.). With that the configuration of the room controller can be changed directly at the device, e.g. changing the temperature for the heating.

Enertex® SynOhr® MultiSense KNX is available in 3 versions and in 3 color options - brushed aluminium, matte black anodized aluminium & glossy white powder coated aluminium (RAL9010):

• Enertex® SynOhr® MultiSense KNX Starter Version (upgradeable)
• Enertex® SynOhr® MultiSense KNX Standard Version (upgradeable)
• Enertex® SynOhr® MultiSense KNX Premium Version

  Warranty:

• 2 years manufacturer`s warranty

Enertex® SynOhr® MultiSense KNX is available in 3 versions:

Enertex® SynOhr® MultiSense KNX Starter (upgradeable):

• Room controller Heating and Cooling
• Measurement of temperature and humidity
• Measurement of the light color and the light incidence
• Two touch buttons and a push button
• 14-byte KNX text message (dot matrix)
• Self-sufficient Speech Recognition with 6 commands

Enertex® SynOhr® MultiSense KNX Standard (upgradeable):

• Room controller Heating and Cooling
• Measurement of temperature and humidity
• Measurement of the light color and the light incidence
• Two touch buttons and a push button
• 14-byte KNX text message (dot matrix)
• Self-sufficient Speech Recognition with 12 commands**
• Play WAV files from SD card
• Freely definable colors of the lightened Ring

Enertex® SynOhr® MultiSense KNX Premium:

• Room controller Heating and Cooling
• Measurement of temperature and humidity
• Measurement of the light color and the light incidence
• Two touch buttons and a push button
• 14-byte KNX text message (dot matrix)
• Self-sufficient Speech Recognition with 40 commands**
• Speech recognition wildcard commands:
  A command "DIMMER _percent" can fully control a KNX dimmer
• Play WAV files from SD card
• Monitoring of noise levels, for example, for use as a "baby monitor"
• Display of 28 characters with auto-scrolling on the dot matrix
• Use of the dot matrix on the display of icons (in Q3/2014)
• Freely definable colors of the lightened Ring
• Different Effects for the Ring and Ambient lightning
• Master / slave mode, if multiple switching points in larger rooms available (Enertex® EibPC required)
