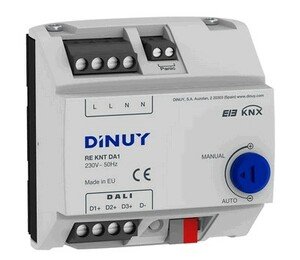

3-channels modular DALI dimming actuator

• 3-channel Broadcast DALI Dimming Actuator.
• Each channel can control up to 64 DALI Drivers (128 in total).
• Unidirectional and Broadcasting communication with the lighting fixtures.
• Integrated overload, short-circuit and over-heating protection.
• Anti-panic input for safety systems.
• DIN-rail mounting, 5 modules wide.
• Manual operation on device by Potentiometer (even without bus connection).
• Programming and commissioning by ETS4 or later version.

TECHNICAL CHARACTERISTICS

Product reference	RE KNT DA1
Power Supply (V)	110VCA - 230VCA
Frequency (Hz)	50
Consumption	13mA
Output channels	3
Type of load	Ballast or Driver DALI
LED lamps load (W)	0
Halogen lamps with ferromagnetic trafo (W	0
Motores (VA)	0
Maximum current input 1/10VDC (mA)	0
Maximum Number of Equipments	192
Binary/Analogic Inputs	0
Installation	DIN Rail
Module number	5
Control	KNX Bus
Programming by	ETS4 o posterior
Compatible with	KNX
Connection terminals	Captive Screws
Cable section (mm2)	6
Minimum Storage Temperature (ºC) (min)	-30
Maximum Storage Temperature (ºC) (max)	70
Minimum Working Temperature (ºC) (min)	-5
Maximum Working Temperature (ºC) (max)	45
Protection Degree	IP20 , UNE 20324
