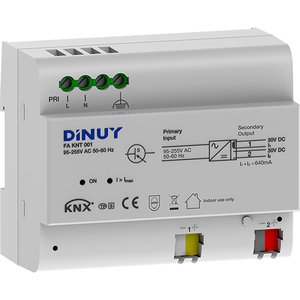

640MA KNX POWER SUPPLY
INFORMACIÓN DEL FABRICANTE
| Brand | : Dinuy |
| Reference | : FA KNT 001 |
| Family | : system-components |
| Color | : |
| Warranty | : 2 years |
| Return allowed | : No |
MORE MANUFACTURER INFORMATION
| Price group | : CD |
| EAN code | : 8422447015003 |
| Country of origin | : ES |
| Net weight | : 365 g |
| Gross weight | : 365 g |
| Length | : 10.8 cm |
| Width | : 9 cm |
| Height | : 6 cm |
SPECIFICATIONS
- SYSTEM COMPONENTS TYPE
- Knx power supplies
- AMPERAGE
- 640mA
- INTERFACE
- KNX
DESCRIPCIÓN
• 640mA Power Supply which produces and monitors EIB/KNX system voltage.
• The bus line is decoupled from the power supply with the integrated choke.
• The power supply is connected to the bus line with a bus connection terminal.
• A reset is triggered by pressing the reset push button and lasts 22 seconds (regardless of the duration of the push button action).
• The bus line disconnected from the powersupply and the devices connected to this bus line are returned to their initial state.
• A 30VDC auxiliary voltage is made available via an additional connection terminal. This voltage can be used to supply a further bus line (in connection with a separate choke).
TECHNICAL CHARACTERISTICS
| Product reference | FA KNT 001 |
| Power by the KNX BUS (Vcc) | 21 ~ 32Vcc |
| Consumption | < 6W |
| Power Supply (V) | 95VCA - 255VCA |
| Frequency (Hz) | 50/60 |
| Auxiliary power output | 1 Salida sin Bobina |
| Power rating (mA) | 640 |
| Minimum Storage Temperature (ºC) (min) | -25 |
| Maximum Storage Temperature (ºC) (max) | 55 |
| Start up | System Mode |
| Installation | DIN Rail |
| KNX Medium | TP1 |
| Minimum Working Temperature (ºC) (min) | -5 |
| Maximum Working Temperature (ºC) (max) | 45 |
| Programming by | ETS3 or ETS4 |
