MANUFACTURER DEVICE NAME

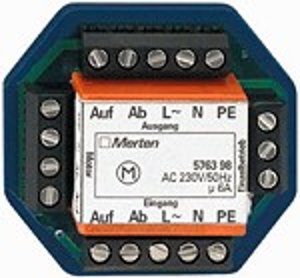

Multiple control relay for roller shutters,flush-mounted
FUTURASMUS DEVICE NAME: KNX shutter actuator, Ref. 576398
INFORMACIÓN DEL FABRICANTE
| Brand | : Merten |
| Reference | : 576398 |
| Family | : actuator |
| Color | : |
| Warranty | : 2 years |
| Return allowed | : No |
MORE MANUFACTURER INFORMATION
| Price group | : E0 |
| EAN code | : 4011281893607 |
| NC/TARIC code | : 85364900 |
| Country of origin | : DE |
| Net weight | : 1 g |
| Gross weight | : 1 g |
| Length | : 1 cm |
| Width | : 1 cm |
| Height | : 1 cm |
SPECIFICATIONS
- INTERFACE
- KNX
- MOUNTING
- Distribution wall box / false ceiling
- ACTUATOR TYPE
- Binary, relay outputs
- BINARY OUTPUTS FUNCTIONALITY
- Blinds AC, 2 outputs = 1 blind
DESCRIPCIÓN
Suitable for a size 60 flush-mounted box. Flat 22 mm design. For local control using push-buttons, installation in a deep flush-mounted box. For controlling up to 2 roller shutter motors locally, in groups or centrally. With separation of load and control circuit, as well as forced locking in both directions of movement. Motors are controlled individually using a roller shutter rocker switch and centrally using the blind time switches or blind push-buttons of the Merten blind control system. Mains voltage: AC 230 V/50 Hz ±10% Control voltage: AC 230 V, ±10% Power consumption: 10 mA in relay mode Switching voltage: max. AC 250 V Switching capacity: max. 6 A Temperature range: 0-60 °C Terminals: max. 1.5 mm2 Dimensions: 22x49x52 mm (HxWxD) Installation: (Deep) flush-mounted box
